Product Overview

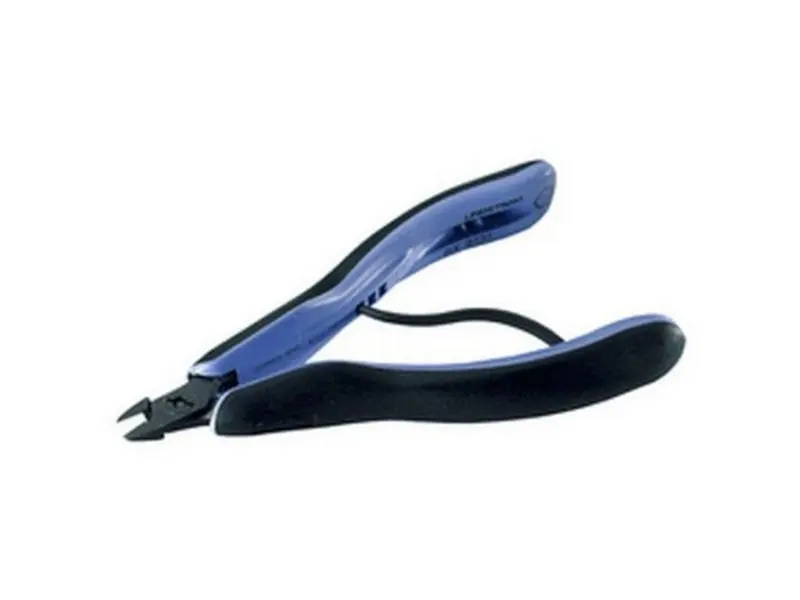

The LINDSTROM RX-8161 is an Ergo™ flush precision diagonal cutter with an oval head, designed for flush-cutting solid copper wires with a specified capacity of 0.3–2.0 mm and a total length of 147.0 mm.
Materials and Construction
- Tool material: High performance alloy steel.
- Cutting edge: Precision induction hardened cutting edges with hardness specified at 63–65 HRC.
- Head shape: Oval head with burnished finish.
- Handle: Two-component ESD-safe Ergo™ grip with thermoplastic surface on polypropylene core.
- Spring: Adjustable Biospring® with three positions for reduced tension throughout the work cycle.
- Assembly: Precision screw joint for minimized friction and maximum alignment of cutting edges.
Typical Applications
- Used for cutting leads.
- Suitable for cutting jewelry wire.
- Used for general assembly applications.
Functional Features
- Micro-Touch™ grip shape enables control and rotation between thumb and index finger for precision work.
- Flush cutting specified for the given wire range (solid copper wire 0.3–2.0 mm).
- Weight specified as 97 g and listed as dissipative.
Further technical details and documentation can be found in the manufacturer’s datasheet.
Specifications
- Product: RX-8161
- Type: Ergo™ Flush Precision Cut Diagonal Cutter with Oval Head
- Cutting capacity (solid copper wire): 0.3–2.0 mm
- Material: High performance alloy steel
- Cutting edges: Induction hardened, 63–65 HRC
- Handle: Two-component ESD-safe Ergo™ grip
- Biospring®: Adjustable, three positions
- Total length: 147.0 mm (5.80 in)
- Weight: 97 g
- Finish: Burnished
- Cutting type: Flush
