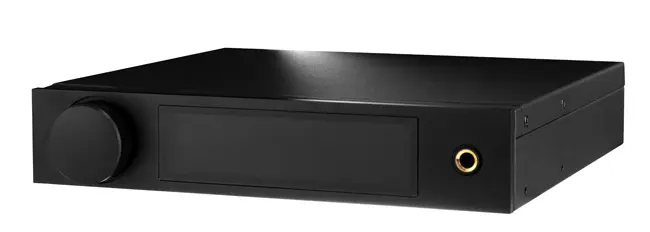

MiniDSP SHD Studio High-res digital DSP og netværks afspiller

MiniDSP SHD Studio High-res digital DSP og netværks afspiller

miniDSP is proud to introduce the SHD Studio (“Streaming High Definition”) digital audio processor incorporating Dirac Live®, the world’s premier room correction solution. While physically the SHD Studio is the “baby brother” of the full-featured SHD — accomplished by removing the analog I/O connectors and circuitry — internally it packs the same powerful audio processing capabilities. First and foremost, the SHD is a stereo Dirac Live room correction processor. The SHD fits right into any digital processing path, with AES/EBU, SPDIF, optical and USB audio inputs, and four output channels on both SPDIF and AES/EBU. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to-use calibration tool.

We have also included network streaming over Ethernet, using a dedicated quad-core ARM processor. Out of the gate, we are shipping with Volumio, a popular open-source network streamer. Volumio gives you access to music files from sources as diverse as a USB stick, to files stored on your local network, to Internet Radio and Spotify. The SHD Studio includes a suite of our powerful but user-friendly DSP audio tuning software – ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2×4 matrix mixer. Applications range from integrating a single subwoofer to a two-way active speaker. Outputs 3 and 4 also drive the headphone jack on the front panel for a uniquely flexible digital processing solution.

Hardware Features

• Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP
• Powered by Dirac Live® 2.0 Digital Room Correction
• Quad core ARM processor for network audio streaming – Preloaded with Volumio
• Inputs: Stereo digital channels (USB Audio/AES-EBU/SPDIF/Optical)
• Outputs: Dual Stereo digital channels (2 x stereo SPDIF RCA outputs and 2 x stereo AES-EBU Balanced XLR) / Headphone amplifier
• USB audio recording feature (4xCH processed output via USB audio to record inputs)
• White/Black OLED front panel controller

Quick guide til at komme igang med Minidsp SHD Studio

– Først opret en konto hos Minidsp til modtage programmet i https://www.minidsp.com/log-in-register?view=registration

– Det næste er at der er en seddel med en kupon kode i kassen, som skal bruges til at hente softwaren med, koden tastes ind her https://www.minidsp.com/support/redeem-coupon og softwaren er i Plugin gruppen Dirac series og navnet herunder er SHD series

– Siden du er logget ind med din bruger, burde du kunne se din bruger oppe i højre hjørne på minidsps hjemmeside. Holder du cursoren over bruger kommer der 4 valg hvor du vælger user downloads, det næste billede er det den øverste gruppe plug-ins du vælger (minidsp plug-ins) og her kan du så downloade programmet som en zip fil.

– Nu kan du åbne softwaren og forbinde minidsp SHD studie via USB, og det første at gøre er at restore til factory som er anden tab i top baren der hedder restore, og vælge den der hedder factory default.

– Så er du klar til at lave ændringer direkte ind i Minidsp SHD Studio og det bliver gemt automatisk
