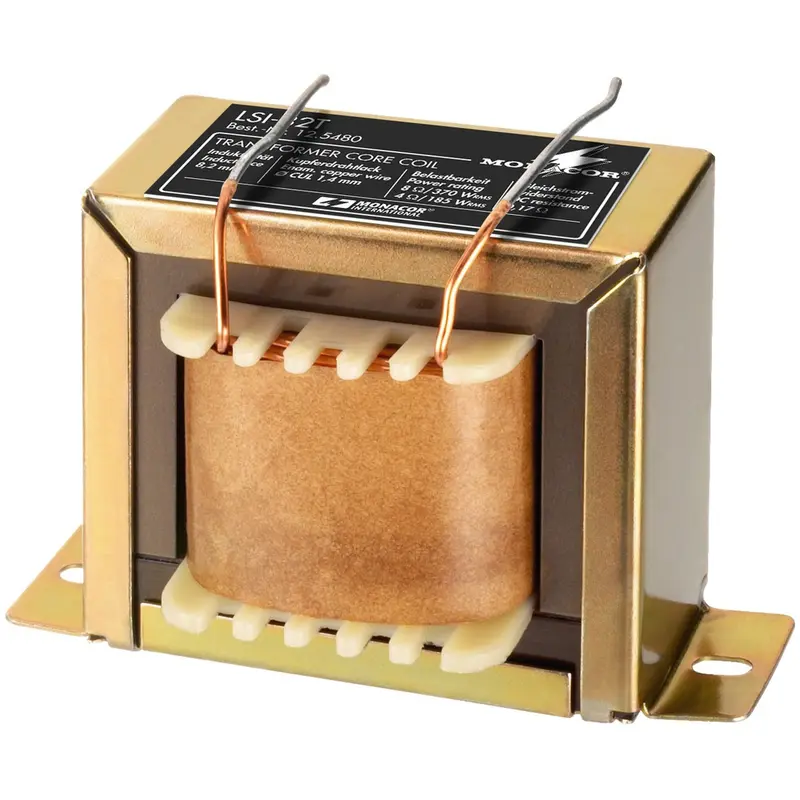

Transformer Core Coils
High-quality crossover network coils of very high power rating, low distortions (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.
High-quality crossover network coils of very high power rating, low distortions (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.
|
| Inductance | 8.2 mH |
| Enam. copper wire
(CUL) |
Ø 1.4 mm |
| Power rating
8 Ω/4 Ω |
370 WRMS/185 WRMS |
| DC resistance | 0.17 Ω |
| Saturation current
(50 Hz) |
6.8 A |
| Dimensions | 68x58x55 mm (EI-66) |
