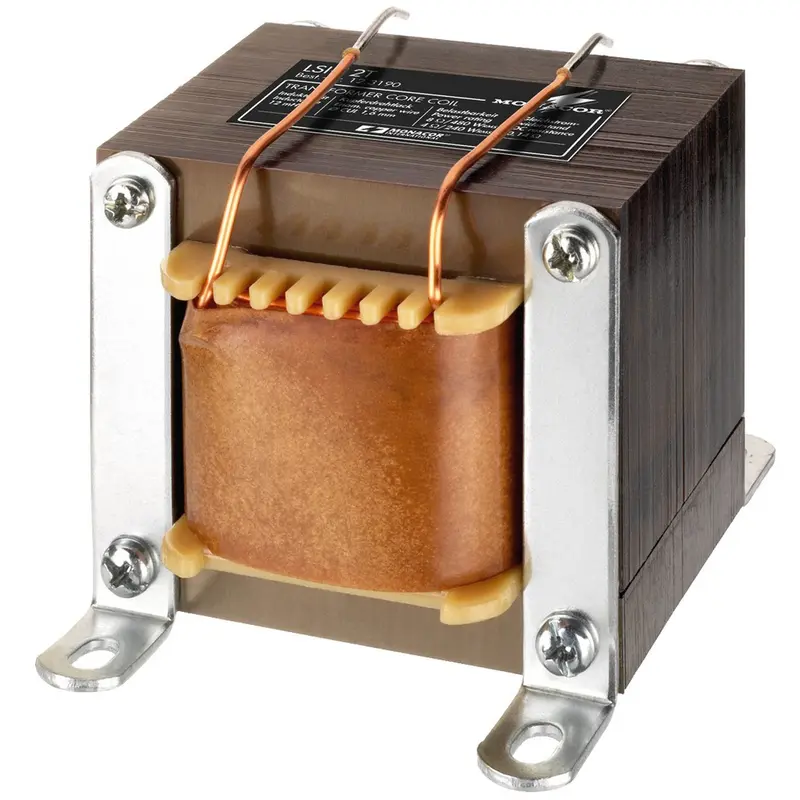

Transformer Core Coils
High-quality crossover network coils of very high power rating, low distortions (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.
High-quality crossover network coils of very high power rating, low distortions (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.
|
| Inductance | 12 mH |
| Enam. copper wire
(CUL) |
Ø 1.6 mm |
| Power rating
8 Ω/4 Ω |
480 WRMS/240 WRMS |
| DC resistance | 0.14 Ω |
| Saturation current
(50 Hz) |
7.7 A |
| Dimensions | 76x65x92 mm (EI-76) |
